BMS Explained: Key Functions, Safety Risks, and Battery Performance Impact

A Battery Management System, or BMS, is not just a supporting controller inside a battery pack. It is the decision layer that shapes safety, usable energy, thermal stability, and long-term reliability.

That matters far beyond passenger EVs. The same BMS logic now influences industrial vehicles, stationary storage, agricultural equipment, backup systems, and electrified infrastructure.

As batteries move across sectors, evaluation can no longer stop at cell chemistry or pack capacity. A strong benchmark must also ask how the BMS measures, protects, balances, and communicates under real operating stress.

In cross-industry benchmarking environments such as Global Industrial Matrix, BMS performance becomes a practical comparison point because it links electronics, thermal design, software behavior, compliance, and field durability.

Why BMS has become a critical industry variable

Electrification has expanded into systems with very different duty cycles. A delivery van, an autonomous tractor, an energy storage cabinet, and a treatment plant backup unit do not stress batteries in the same way.

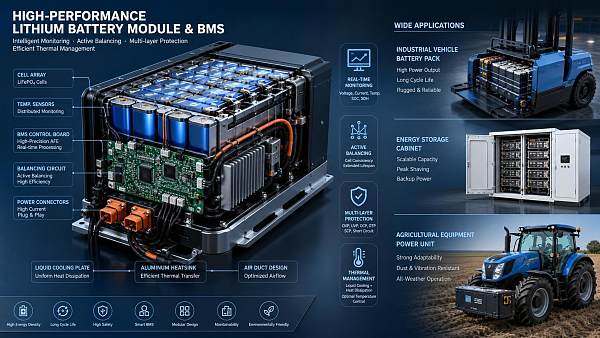

The image above fits a central point: battery value depends on control quality as much as cell quality.

A pack may use advanced lithium-ion cells, yet still underperform if the BMS misreads state of charge, applies weak balancing logic, or responds too slowly to thermal events.

This is why BMS assessment now appears in broader technical reviews. It affects safety cases, service intervals, usable range, warranty exposure, and compatibility with higher-level controls.

For multi-disciplinary benchmarking, the BMS also reveals how well a manufacturer integrates hardware, firmware, sensing architecture, and functional safety discipline.

What a BMS actually does inside the pack

At a basic level, the BMS observes battery conditions and decides whether operation remains inside a safe and efficient window. In practice, that window is narrow and constantly changing.

Voltage, current, and temperature are the main inputs. From those signals, the BMS estimates key states that cannot be measured directly with perfect accuracy.

Core functions that define pack behavior

• Cell monitoring tracks individual cell voltage and detects drift before it becomes a safety or performance issue.
• Current sensing supports charge control, discharge control, and energy throughput calculations.
• Temperature supervision identifies local hot spots, not just average pack temperature.
• State estimation calculates state of charge, state of health, and sometimes state of power.
• Balancing reduces mismatch between cells, helping protect available capacity over time.
• Protection logic isolates the pack during overvoltage, undervoltage, overcurrent, short circuit, or thermal runaway risk.
• Communication functions pass battery status to vehicle controllers, chargers, inverters, or remote diagnostic systems.

A mature BMS does more than trigger shutdowns. It manages trade-offs between protection margins, usable energy, response speed, and expected service life.

Where safety risk really comes from

Many battery failures are discussed as chemistry problems, but the real picture is usually more layered. Safety risk often emerges from the interaction between cells, pack layout, cooling, software, and operating conditions.

A weak BMS may not create the original fault, but it can fail to detect it early or fail to contain it once it starts.

Common failure pathways

More attention is now going to edge cases. Fast charging in cold weather, repeated partial cycling, vibration exposure, and asynchronous module aging all test the limits of BMS robustness.

Battery performance is heavily shaped by control quality

Battery performance is often summarized by energy density, power output, or cycle life. Yet those headline values are only partly chemical. The BMS determines how much of that theoretical value becomes usable.

For example, conservative limits improve safety but may reduce available capacity. Aggressive limits may improve short-term output while increasing thermal stress and aging.

Three performance effects to watch closely

• Range or runtime accuracy depends on state-of-charge estimation, especially under variable loads.
• Cycle life depends on how the BMS controls voltage ceilings, depth of discharge, and heat buildup.
• Power availability depends on temperature-aware current limits and fast fault response.

This is why two battery packs with similar nameplate specifications can behave very differently in the field. The difference may sit in algorithms, calibration, and balancing strategy rather than in the cells alone.

Cross-sector applications make BMS evaluation more complex

In electronics and mobility, the BMS often supports fast response, dense packaging, and intensive data exchange. In agricultural machines, dirt, shock, seasonal idling, and long service cycles change the design priorities.

Industrial ESG and infrastructure systems bring another layer. Stationary storage may demand grid interaction, remote diagnostics, and long-duration cycling under tightly managed thermal conditions.

That cross-sector view is valuable because it avoids single-industry assumptions. A BMS tuned for a light EV pack may not suit an off-highway machine or a modular storage cabinet.

Platforms such as GIM are useful in this context because benchmarking across ISO, IATF, and IPC-related design expectations highlights whether a battery system is merely functional or genuinely production-ready.

What to examine when comparing BMS capability

A meaningful review should look beyond a feature checklist. The real question is how reliably the BMS performs under uncertainty, aging, and abnormal operating conditions.

Useful evaluation dimensions

• Measurement accuracy across voltage, current, and temperature ranges.
• Cell balancing method, including passive versus active strategy and balancing speed.
• Fault detection coverage for sensor loss, communication errors, contactor issues, and insulation events.
• Thermal derating logic and how early it reacts to uneven heating.
• State estimation stability during dynamic loads, cold starts, or partial cycling.
• Data logging depth for root-cause analysis and service traceability.
• Alignment with pack architecture, charger behavior, and supervisory control systems.

It is also worth checking what the BMS does after a fault. Recovery strategy matters. Some systems latch off immediately, while others allow controlled restart after validation.

Practical interpretation in real projects

In actual deployment, the best BMS is not always the one with the most visible functions. It is the one that fits the load profile, environment, maintenance model, and safety expectations of the system around it.

A compact high-power application may value rapid protection and tight thermal control. A remote infrastructure asset may value stable diagnostics, event history, and predictable degradation tracking.

That is why evaluation should connect laboratory metrics with operating reality. If duty cycles, ambient conditions, and service practices are ignored, BMS comparisons become misleading.

A disciplined next step is to map application demands against BMS architecture, protection logic, thermal behavior, and compliance evidence. From there, deeper benchmarking can focus on the parameters most likely to affect safety margins and lifetime value.
