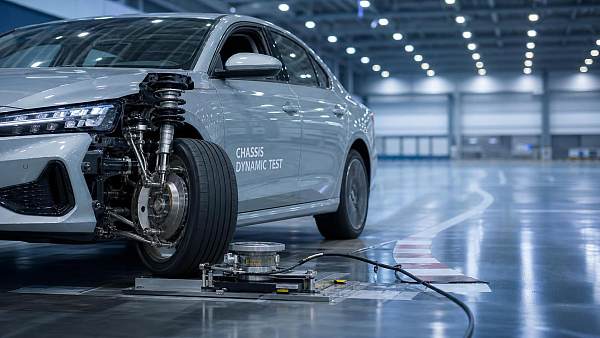

How chassis dynamics testing reveals handling limits before road trials

Handling limits can be found before the first road mile

Road trials remain essential for vehicle sign-off, but they are an expensive and imperfect place to discover a basic chassis problem. Weather changes, surface variation, driver inputs, traffic constraints, prototype availability, and test-track scheduling can all obscure cause and effect. By the time a vehicle displays unstable braking, slow steering recovery, unexpected rear-axle rotation, or poor ride-control trade-offs on the road, the design team may already be working around a costly late-stage issue.

Chassis dynamics testing changes that sequence. It puts the vehicle, subsystem, or model through controlled load cases and transient maneuvers so evaluators can observe how the suspension, steering, tires, brakes, body structure, and electronic controls behave as grip is approached or exceeded. The value is not a single “handling score.” It is the ability to identify the conditions under which a vehicle stops behaving predictably, determine which subsystem drives that behavior, and decide whether the concern is a design issue, a calibration issue, a test-method limitation, or an acceptable operating boundary.

For a technical evaluator, the practical question is therefore narrower than “Does the vehicle handle well?” The relevant question is: can the available test evidence show where the vehicle’s controllability margin narrows, and can that evidence be traced to repeatable physical causes before road trials consume prototypes and engineering time?

What a controlled test can expose that a road test may not

Handling at the limit is shaped by interactions. A steering input changes tire slip angle; tire forces redistribute load; suspension geometry changes wheel alignment and compliance; body motion alters the vertical load on each tire; brake and powertrain interventions may change yaw response. A vehicle can feel acceptable in a broad road evaluation while still carrying a vulnerability that appears only in a particular combination of speed, load, steering rate, road friction, or actuator state.

A controlled test separates those variables. Engineers can hold vehicle mass, tire specification, inflation pressure, ride height, ambient condition, road-surface category, and maneuver definition as stable as practical. They can then vary one factor deliberately: steering-wheel ramp rate, brake pressure build rate, lateral acceleration target, payload position, damping setting, rear-steer command, or electronic stability-control calibration.

This matters because handling limits are usually revealed in the transition toward saturation, not only after an obvious loss of control. Early indicators can include:

• Front or rear tire force reaching saturation sooner than predicted by the intended balance.
• A sharp change in yaw-rate gain as lateral acceleration rises.
• Steering response that becomes delayed, overly sensitive, or non-linear during a transient maneuver.
• Excessive roll, pitch, wheel lift tendency, or oscillation after a steering or braking input.
• Compliance steer, bump steer, or alignment change that moves the vehicle away from the target path.
• Uneven wheel-load transfer that reduces usable tire capacity at the axle most needed for stability.
• Electronic interventions that arrive too late, too abruptly, or mask a mechanical limitation.

None of these observations alone proves that a vehicle is unsafe. A performance-oriented vehicle may be deliberately tuned to rotate more readily, while a commercial vehicle, autonomous platform, or electrified utility vehicle may prioritize stability, load tolerance, and predictable control response. The evidence becomes useful when measured behavior is compared with the vehicle’s intended operating envelope and an agreed acceptance method.

The test sequence matters more than the test label

“Chassis dynamics testing” is often used as a broad label for activities with very different levels of realism and diagnostic power. A component rig, a suspension kinematics-and-compliance bench, a four-post road simulator, a driving simulator, a multibody vehicle model, a flat-pad maneuver, and a full proving-ground test do not answer the same question. Treating them as interchangeable is a common source of weak validation plans.

Early-stage simulation is useful for exploring architecture choices, such as suspension hard-point locations, spring and anti-roll-bar rates, steering ratio, mass distribution, and controller logic. Its advantage is speed: many candidate configurations can be assessed before hardware is committed. Its limitation is dependence on model quality. Tire data, bushing characteristics, damper behavior, structural compliance, actuator latency, and controller assumptions can materially alter the result. A simulation can identify sensitivities and rank alternatives, but it should not be treated as proof of final handling performance without correlation to physical measurements.

Subsystem and rig testing provide a different form of confidence. Kinematics and compliance testing can reveal how toe, camber, caster, track, wheelbase, and force steer change under vertical, longitudinal, and lateral loads. Damper characterization can expose differences between nominal settings and delivered behavior. Steering-system tests can quantify friction, hysteresis, assist response, and compliance. These tests are particularly valuable because they establish whether the inputs used in a vehicle model resemble the hardware that will actually be built.

Vehicle-level controlled maneuvers then test the coupled system. Constant-radius cornering can reveal steady-state understeer or oversteer characteristics and load-transfer behavior. Step-steer and sine-with-dwell maneuvers examine transient yaw response and recovery. Lane-change or obstacle-avoidance procedures assess path-following capability under rapid lateral demand. Straight-line and split-friction braking assess directional stability when braking forces are unequal. Ride and handling assessments on defined surfaces can show whether damping, roll control, and steering tuning remain coherent when vertical and lateral inputs arrive together.

Road trials should follow rather than replace this sequence. They add the variation that controlled facilities intentionally remove: real surfaces, environmental disturbances, route geometry, driver comfort perception, noise, durability loading, and operational context. When the earlier work is well designed, road testing can focus on confirming correlation and identifying real-world interactions instead of searching blindly for root causes.

Limit behavior is a system-property, not a tire-only result

Tires set the immediate contact-patch boundary, so tire condition and characterization are central to any credible handling evaluation. But a conclusion such as “the tires caused the issue” is often incomplete. Tire force capacity changes with vertical load, temperature, inflation pressure, wear, camber, slip angle, slip ratio, and surface friction. The chassis determines how those conditions are distributed across the four contact patches.

Consider a vehicle that develops abrupt understeer during high lateral load. The first explanation may be front-axle saturation. That is a description of the event, not necessarily its cause. The vehicle may be transferring too much load to the outside front wheel; front geometry may be losing favorable camber in roll; a front compliance mode may be adding toe-out or reducing steering precision; rear roll stiffness may be too low to maintain the intended balance; or an electronic torque-management strategy may be changing longitudinal force at a moment that alters the front tires’ available lateral capacity.

The same discipline applies to rear-axle instability. Rear tire saturation can arise from rearward load transfer during braking, rear suspension compliance, an aggressive rear-steer schedule, differential behavior, regenerative-braking allocation, or an overly abrupt stability-control intervention. Test planning should therefore ensure that signals are synchronized across wheel speeds, steering angle, yaw rate, lateral and longitudinal acceleration, brake pressure, damper or suspension position where relevant, drive torque, controller states, and wheel-force measurements when the facility supports them.

Without this signal context, the team may see the symptom but lack a defensible path to correction. A driver comment can flag a problem; instrumented measurements are needed to establish when the problem begins, how rapidly it develops, and which variables move first.

Repeatability is the condition for making decisions

A dramatic maneuver trace has limited value if it cannot be reproduced. Before comparing designs, suppliers, software versions, or vehicle configurations, evaluators need confidence that the test method itself is stable. The test driver or steering robot, entry speed, steering profile, brake application, payload, tire conditioning, surface condition, thermal state, and data-processing rules can all shift a result.

Repeatability does not require eliminating every source of variation. It requires identifying the sources that materially affect the decision and controlling or recording them. Tires are often the most important example. A change in tire temperature or wear state can be large enough to make a chassis calibration look better or worse than it is. Replacing a tire set mid-program without appropriate conditioning, or comparing results from different surface states, can invalidate an otherwise careful evaluation.

Technical teams should establish maneuver entry conditions, warm-up procedures, repeat count, allowable run-to-run variation, invalid-run criteria, instrumentation checks, and a clear method for filtering and aligning time-series data. The acceptance criteria should also be agreed before the result is known. Post-test arguments often arise because one group focuses on peak lateral acceleration, another on yaw overshoot, another on steering effort, and another on whether the driver could maintain the intended path. All may be legitimate metrics, but they answer different questions.

For vehicles intended for regulated markets, internal testing also needs a clear connection to the applicable homologation, functional-safety, and quality processes. ISO and IATF-aligned management systems can support traceability and control of test processes, but they do not by themselves define acceptable vehicle handling. Specific regulatory or program requirements must be selected according to the vehicle class, market, maneuver, and development phase. A generic reference to a standard is not a substitute for a defined test objective and documented procedure.

How to read the data without overclaiming

Chassis dynamics data can create false confidence when a clean graph is mistaken for complete validation. The most useful analysis looks for consistency between physical explanation and measured response. If a calibration reduces yaw overshoot but increases steering correction demand, the result should be examined as a trade-off rather than reported as an unconditional improvement. If a simulation predicts stable recovery but the physical vehicle shows delay or oscillation, the model needs correlation work before it is used to support wider decisions.

Several questions help keep interpretation disciplined:

• Was the maneuver representative of the operating condition the vehicle must tolerate?
• Were tires, mass distribution, suspension settings, and controller versions documented well enough to reproduce the result?
• Did the response change smoothly toward the limit, or did a subsystem introduce a discontinuity?
• Is the observed result robust across repeat runs and relevant surface conditions?
• Can the result be explained by measured load transfer, alignment behavior, tire state, or control-system action?
• Does an improvement in one metric create an unacceptable compromise in braking stability, ride control, driver workload, energy recovery, or component durability?

These questions are particularly important for vehicles with multiple active systems. Brake-by-wire, torque vectoring, rear-wheel steering, active damping, air suspension, and stability-control functions can improve usable performance, but they also add dependencies between hardware, software, sensing, and calibration. Testing must capture both nominal behavior and credible degraded conditions. A control strategy that performs well with ideal sensor data may behave differently when signals are delayed, constrained, implausible, or unavailable.

Where pre-road testing provides the strongest return

The highest return usually comes when test evidence informs a decision that is still changeable. This may be an architecture choice before tooling, a suspension geometry revision before a prototype build, a damper or bushing selection before sourcing is frozen, or a software calibration decision before broader fleet testing begins. Discovering a limitation at this point can prevent repeated road-test loops built around a configuration that cannot meet its target.

It is less effective to use controlled testing only as a final pass/fail gate. By then, many hard decisions may already be fixed. The test program becomes more useful when it is structured as a chain of evidence: model assumptions are checked against component data; component behavior is checked against vehicle response; controlled vehicle maneuvers are checked against road observations; and discrepancies are fed back into the model and validation plan.

For technical evaluators, the practical deliverable is not merely a test report. It is a traceable argument about handling margin: which loads and maneuvers have been assessed, which boundary conditions were controlled, where the vehicle begins to depart from its intended response, how repeatable that finding is, and what design or calibration action follows. That argument gives road trials a clearer purpose. Instead of discovering the vehicle’s limits for the first time, the road program can determine whether those limits remain acceptable when controlled assumptions meet the variability of real operation.
