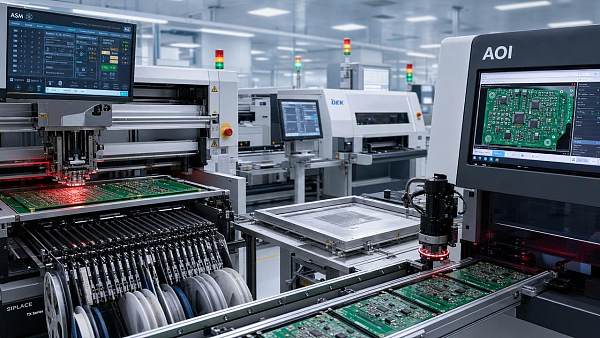

PCBA Manufacturing Process Steps That Affect First-Pass Yield

For technical evaluators, first-pass yield reveals whether a line is stable or merely productive on paper. In the PCBA manufacturing process, defects often start long before final inspection.

Small shifts in stencil design, paste condition, placement accuracy, thermal balance, and verification routines can change scrap, rework, and delivery predictability. That is why yield analysis matters across electronics, mobility, industrial controls, agri-tech, and environmental infrastructure.

Within GIM’s cross-sector benchmarking framework, the PCBA manufacturing process is evaluated not only by throughput, but by repeatability, traceability, and alignment with IPC, ISO, and IATF-driven expectations.

When high-reliability applications demand yield stability

Not every assembly environment carries the same risk. A consumer accessory may tolerate limited rework. A powertrain controller, sensor node, or filtration control module usually cannot.

The PCBA manufacturing process becomes more sensitive when boards include fine-pitch parts, mixed technologies, thermal mass variation, or strict field-life expectations. First-pass yield then becomes a proxy for process maturity.

Across integrated industries, three conditions sharply raise yield pressure:

• Mission-critical uptime, where latent solder defects create expensive field failures.
• Regulated quality systems, where traceable process control is audited.
• Global sourcing complexity, where line-to-line consistency determines supplier comparability.

In dense SMT builds, solder paste printing often decides first-pass yield

In most lines, solder paste printing is the earliest major gate in the PCBA manufacturing process. If deposition volume is inconsistent, later stages cannot fully recover.

Insufficient paste leads to opens, weak joints, and head-in-pillow risks. Excess paste increases bridging, solder balls, and cleaning concerns around fine-pitch packages.

Key judgment points during printing

• Stencil aperture design must match pad geometry and component type.
• Paste viscosity, metal loading, and storage control influence transfer efficiency.
• Squeegee pressure, speed, and separation settings affect repeatability.
• Board support quality determines print consistency on thin or warped panels.

For automotive electronics or industrial sensing boards, statistical solder paste inspection is especially valuable. It exposes volume drift before defects multiply downstream.

A stable PCBA manufacturing process usually shows disciplined stencil maintenance, environmental control, and closed-loop adjustments based on actual print data.

In mixed-component assemblies, placement accuracy shapes downstream defect risk

Component placement is not only about machine speed. It determines how well the printed deposit, package geometry, and reflow forces align during soldering.

The PCBA manufacturing process becomes vulnerable when feeders drift, nozzles wear, vision libraries are incomplete, or package warpage is underestimated.

Typical placement-driven yield losses

• Skewed chip components that later tombstone or bridge.
• Offset BGAs and QFNs that hide poor wetting under the package.
• Incorrect polarity or wrong-part placements caused by feeder verification gaps.
• Mechanical stress on fragile parts during pickup or placement.

In mobility, power electronics, and smart equipment, mixed BOM complexity is common. That makes component library control, feeder traceability, and machine calibration central to first-pass yield.

A robust PCBA manufacturing process links placement data with defect Pareto analysis. This reveals whether recurring faults originate from setup, part quality, or package behavior.

In thermally uneven boards, reflow profiling determines whether good placement becomes good soldering

Reflow is where many hidden weaknesses become visible. Even accurate printing and placement can fail if the thermal profile does not suit the assembly’s mass distribution.

The PCBA manufacturing process is especially sensitive when one board combines connectors, shields, large ground planes, and fine-pitch ICs.

Core profile factors that affect first-pass yield

1. Ramp rate that avoids component shock and paste spatter.
2. Soak balance that equalizes temperatures across different thermal masses.
3. Time above liquidus that ensures wetting without overheating materials.
4. Peak temperature that matches alloy needs and package limits.
5. Cooling rate that supports joint integrity and microstructure control.

Poor profiling can create voiding, non-wetting, cold joints, warpage-related opens, and cosmetic discoloration. In high-reliability applications, these are not cosmetic issues. They are service-life risks.

An optimized PCBA manufacturing process validates profiles by product family, board thickness, copper distribution, and alloy system rather than relying on one universal recipe.

In regulated or traceable environments, inspection discipline separates stable lines from reactive lines

Inspection does not improve solder joints directly. It improves decision quality. In the PCBA manufacturing process, this distinction matters because detection speed affects containment.

A line that finds defects late may still ship acceptable boards, but usually with higher rework, longer cycle time, and weaker root-cause visibility.

Inspection stages that influence yield management

• SPI confirms deposit quality before components are mounted.
• AOI captures visible placement and solder defects after reflow.
• X-ray supports hidden-joint assessment for BGA, QFN, and voiding concerns.
• ICT and functional testing verify electrical integrity beyond appearance.

The strongest PCBA manufacturing process uses inspection data as a control loop, not a reporting exercise. Thresholds, false-call tuning, repair feedback, and trend review should connect clearly.

Different application scenarios require different yield priorities

First-pass yield targets should reflect product risk, board architecture, and field exposure. The same PCBA manufacturing process controls do not carry equal importance in every scenario.

How to judge whether a PCBA manufacturing process is truly yield-ready

A practical assessment should move from symptoms to controls. High first-pass yield is meaningful only when it is repeatable across lots, operators, and product revisions.

• Review defect Pareto by process step, not just final reject totals.
• Check whether SPI, AOI, X-ray, and test data are linked.
• Confirm stencil, feeder, profile, and recipe revision control.
• Look for product-family-specific process windows, not generic settings.
• Validate how rework data feeds root-cause correction.

This approach helps distinguish a mature PCBA manufacturing process from one that depends too heavily on inspection sorting and post-process repair.

Common misjudgments that reduce first-pass yield

Several errors appear repeatedly in benchmarking reviews. Each one can mask real process weakness while inflating short-term output.

• Assuming AOI can compensate for unstable solder paste printing.
• Using one reflow profile for all assemblies on the line.
• Treating rework capability as equivalent to first-pass process capability.
• Ignoring board warpage and component moisture sensitivity.
• Focusing on machine utilization while overlooking defect escape trends.

In a resilient PCBA manufacturing process, these issues are managed upstream through engineering discipline, data feedback, and scenario-based controls.

Next-step actions for improving yield across complex manufacturing programs

Yield improvement should start with the steps that create irreversible defects earliest. For many assemblies, that means printing, placement validation, and reflow confirmation before expanding test coverage.

GIM evaluates the PCBA manufacturing process within a wider industrial system, connecting board-level quality with application risk, compliance expectations, and supply-chain comparability.

When first-pass yield is reviewed through actual use scenarios, process decisions become clearer. The result is lower defect cost, stronger reliability confidence, and more predictable program execution.
