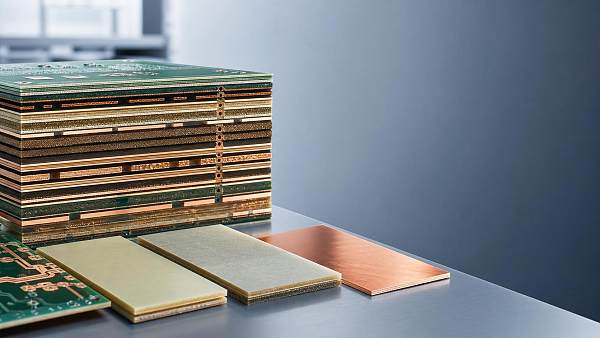

PCB Fabrication Materials: Cost, Reliability, and Stackup Tradeoffs

PCB Fabrication Materials: Cost, Reliability, and Stackup Tradeoffs

Choosing the right PCB fabrication materials is a strategic decision that directly affects unit cost, long-term reliability, and stackup performance.

For technical evaluation teams, material selection is not a minor detail. It shapes electrical behavior, yield stability, sourcing flexibility, and total lifecycle risk.

In practice, the best answer is rarely the most advanced laminate. It is usually the material system that fits performance targets without creating hidden manufacturing penalties.

That is why PCB fabrication materials should be reviewed through three linked lenses: cost, reliability, and stackup design.

Why PCB Fabrication Materials Drive More Than Board Cost

Many sourcing reviews begin with laminate price per panel. That is understandable, but it often misses the larger cost structure.

PCB fabrication materials influence drilling behavior, lamination cycles, copper adhesion, impedance control, and scrap exposure. Each factor can move the true cost far beyond raw sheet pricing.

A lower-cost FR-4 grade may look attractive early on. Yet if it causes resin variation or tighter processing windows, yield loss can erase the savings quickly.

The same applies to over-specification. Premium low-loss materials can improve signal performance, but they may add cost where the application gains little measurable value.

From a benchmarking perspective, material choice should be tied to electrical demand, thermal duty, field life, and factory capability at the same time.

Core Categories of PCB Fabrication Materials

Most selection exercises start with a short list of common PCB fabrication materials. The challenge is understanding where each category fits.

Standard FR-4

Standard FR-4 remains the default option for broad industrial and commercial electronics. It balances availability, process familiarity, and moderate cost.

It works well for many multilayer boards, control systems, and general embedded products. However, electrical loss and thermal endurance can become limiting factors.

High-Tg and High-Reliability FR-4

High-Tg variants are often chosen for harsher reflow exposure, thicker copper builds, or elevated operating temperatures.

These PCB fabrication materials usually provide better dimensional stability and lower risk during thermal cycling. They are common in automotive, power, and industrial control programs.

Low-Loss and High-Speed Materials

For RF, fast digital links, and dense data systems, dielectric loss becomes critical. That is where low-Dk and low-Df materials enter the decision process.

These materials support cleaner signal transmission and tighter impedance control. The tradeoff is higher cost and, in some cases, narrower fabrication familiarity across suppliers.

Metal-Core and Specialty Substrates

LED modules, power electronics, and thermal management assemblies may need aluminum-core, ceramic-filled, or other specialty PCB fabrication materials.

These options can solve heat or performance bottlenecks. Still, they often require close review of process compatibility, lead time, and downstream assembly constraints.

Cost Tradeoffs: What Should Actually Be Compared

A useful cost model for PCB fabrication materials should extend beyond laminate price. It should capture both visible and hidden cost drivers.

• Base material cost by panel or sheet
• Yield impact during drilling, imaging, and lamination
• Additional process requirements for specialty materials
• Availability across qualified suppliers and regions
• Inventory exposure from long lead times or single-source dependence
• Field failure risk and warranty cost

This broader view changes decisions. A slightly more expensive laminate may produce lower scrap, stronger consistency, and easier qualification across manufacturing sites.

That can matter more than saving a few percentage points on material input. In global sourcing, consistency often has greater financial value than headline unit price.

Reliability Factors That Should Not Be Treated as Secondary

Reliability screening for PCB fabrication materials should match the actual stress profile of the product. Generic assumptions are rarely enough.

The most important material indicators often include glass transition temperature, decomposition temperature, CTE behavior, moisture absorption, CAF resistance, and peel strength.

For example, a board used in power conversion or under-hood automotive systems faces very different thermal and vibration demands than a low-duty interface board.

More importantly, reliability is not only about surviving tests. It is about maintaining predictable performance after repeated thermal, mechanical, and environmental stress.

This is where material benchmarking becomes valuable. It helps teams compare datasheet claims against real production behavior and field conditions.

Common Reliability Questions

• Will the laminate tolerate repeated rework cycles?
• Does the resin system remain stable in humid or contaminated environments?
• How does the material behave with heavy copper or stacked vias?
• Is there enough long-term supply continuity for service-life commitments?

Stackup Performance: Where Material Choice Becomes System Design

Stackup planning is where PCB fabrication materials move from procurement data into actual engineering performance.

Material Dk affects trace geometry for impedance targets. Resin content influences press-out behavior. Glass weave and dielectric thickness affect signal stability and skew control.

In high-layer-count boards, these effects become more visible. Small material variations can create meaningful differences in insertion loss, warpage, and registration performance.

This also means stackup decisions should not be isolated from the fabricator. A design that looks clean in theory may be difficult to build repeatedly at scale.

A practical review should cover the following points early:

1. Target impedance and loss budget
2. Layer count and copper balance
3. Thermal exposure during assembly and operation
4. Via structure complexity, including HDI features
5. Regional availability of the selected PCB fabrication materials

When these elements are aligned, stackup performance becomes more predictable. When they are not, qualification timelines usually stretch.

A Practical Comparison Framework

To make PCB fabrication materials easier to compare, it helps to use a compact scoring model across technical and commercial dimensions.

This kind of framework is especially useful when several PCB fabrication materials appear technically acceptable. It keeps the review anchored to measurable tradeoffs.

How to Make a Better Selection Decision

A strong decision process usually starts with the application, not the datasheet. That sounds simple, but it changes how options are filtered.

Begin by defining the real operating envelope. Include temperature range, signal speed, expected service life, compliance needs, and failure consequences.

Next, align candidate PCB fabrication materials with stackup architecture and approved fabricator capability. This step removes many unrealistic options early.

Then compare total landed cost, not laminate price alone. Include yield sensitivity, qualification effort, and sourcing resilience.

Finally, validate with prototype data and failure-mode learning. The goal is not to choose the most impressive material. It is to choose the most defensible one.

In today’s manufacturing environment, PCB fabrication materials should be treated as a strategic benchmark input. They connect design intent, production reality, and supply chain reliability.

Teams that evaluate those tradeoffs early tend to avoid expensive redesigns later. They also build stronger confidence into sourcing and qualification decisions.

The practical next step is straightforward: map your performance requirements, rank the risk drivers, and benchmark PCB fabrication materials against the stackup you can actually build and scale.
