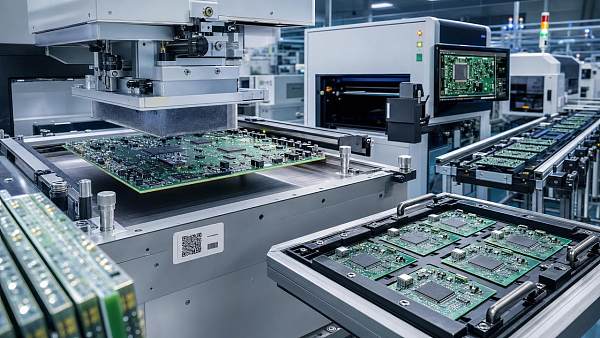

Process Guide: Cutting Rework Risk in PCB Assembly

Why this process guide matters when PCB programs cross industries

PCB assembly rework rarely starts on the line. It usually begins earlier, when assumptions go unchallenged across design, sourcing, process control, and inspection.

That is why a practical process guide must look beyond isolated defects. It needs to connect technical decisions with schedule pressure, supplier variation, and field reliability.

In cross-sector manufacturing, the same assembly issue can carry very different consequences. An automotive control board, irrigation node, and filtration monitor may share components, but not risk tolerance.

GIM’s benchmarking perspective is useful here. When electronics sit inside larger mechanical and environmental systems, rework risk should be judged against standards, operating conditions, and supply chain traceability together.

This process guide focuses on the points where rework can be prevented, not merely detected. The aim is better yield, fewer escapes, and steadier decisions when production conditions are not identical.

Different production contexts change what “good control” really means

A common mistake is treating PCB assembly as a uniform process. In reality, rework risk shifts with board complexity, compliance demands, and how closely the product interacts with other subsystems.

High-density boards often fail through placement accuracy, stencil design, and thermal imbalance. Ruggedized boards more often expose weaknesses in material handling, cleaning control, or coating compatibility.

Production volume also changes the judgment. Low-volume builds suffer from unstable setup knowledge. Higher-volume runs tend to reveal repeatable drift in solder paste, feeder setup, and inspection thresholds.

A useful process guide therefore starts with context. Before changing machines or adding checkpoints, confirm whether the main risk is design ambiguity, supplier inconsistency, process variation, or traceability gaps.

A quick view of how needs diverge

Early-stage builds usually need tighter design-to-line translation

In prototype and NPI work, defects are often symptoms of unclear intent. The assembly line may be capable, yet the package library, polarity marking, or approved substitute list is incomplete.

This is where a process guide should favor review quality over inspection volume. More checkpoints do not help if the work instruction still leaves room for interpretation.

Useful controls include a structured DFM review, solderability verification for alternates, and one source of truth for BOM, Gerber, centroid, and revision status.

In actual programs, one overlooked issue is fixture and support design. Thin or large boards may pass print inspection, then warp enough during reflow to create avoidable rework later.

• Freeze package libraries before pilot release.
• Link every engineering deviation to board serial or lot code.
• Run first-article review with process, quality, and test records side by side.

For repeat production, supplier alignment often decides whether rework stays visible or turns systemic

Once a program scales, the risk profile changes. Rework is less about one-off mistakes and more about recurring variation that hides inside normal throughput.

A process guide for this stage should connect incoming material control with line performance. Solder paste age, PCB finish stability, moisture sensitivity, and reel handling all affect repeatability.

Cross-border supply chains make this harder. Equivalent materials may meet the same specification on paper, yet behave differently in printing, wetting, or post-reflow residue formation.

GIM’s cross-sector benchmarking logic is relevant because it treats standards as operating tools. IPC acceptance, ISO process records, and IATF trace expectations should be connected before yield drifts.

One practical move is to define escalation thresholds by defect family. A rise in tombstoning needs a different response than a rise in insufficient solder or voiding.

Supplier-related checks that reduce hidden rework

• Match component date code policy with storage and floor life rules.
• Confirm PCB finish type and solderability history before changing source.
• Require documented equivalency for paste, flux, and cleaning chemistry substitutions.
• Review packaging damage data, not only incoming pass rates.

Boards used in harsh environments need inspection priorities that go beyond cosmetic acceptance

Some assemblies look acceptable at shipment but fail after humidity, vibration, dust, or chemical exposure. Rework risk in these cases is tied to long-term survivability, not visible defects alone.

That pattern is common in mobility electronics, field sensors, smart agriculture controls, and environmental infrastructure modules. The board becomes part of a wider operating system.

A strong process guide here should include ionic cleanliness limits, coating coverage verification, thermal cycle review, and connector strain considerations.

More importantly, acceptance criteria should reflect use conditions. A harmless-looking residue on an indoor controller may become a corrosion trigger in an outdoor enclosure.

Another frequent misjudgment is assuming the same rework method fits all products. Local heating, touch-up flux, or pad repair can change reliability margins in safety-linked assemblies.

Inspection works best when linked to process learning, not isolated gatekeeping

Inspection is essential, but inspection alone does not cut rework risk. If AOI, SPI, X-ray, and functional test operate in separate data streams, recurring causes stay hidden.

A more effective process guide builds correlation. When solder paste offsets later appear as opens, or void patterns match a profile drift, corrective action becomes faster and more precise.

This matters especially in mixed technology lines. SMT and through-hole defects often interact through handling, thermal exposure, and manual intervention timing.

In practice, IPC-based inspection should be paired with defect pareto review and lot-level traceability. The goal is not just pass or fail. It is understanding where the process is losing margin.

What to link in a usable process guide

Where teams often misread the real source of rework

The first misread is blaming operators for defects created by design ambiguity or unstable inputs. Repeated manual touch-up can hide a preventable upstream issue.

The second is focusing only on unit repair cost. A low direct rework cost may still damage test throughput, shipment confidence, and field reliability reserves.

The third is assuming similar applications need identical controls. A controller inside sealed industrial equipment and one inside exposed farm machinery do not age the same way.

Another overlooked point is data closure. If rework records stop at defect labels, they cannot support future sourcing decisions, process tuning, or audit readiness.

How to adapt this process guide into a working control plan

Start by mapping each board to its operating environment, compliance burden, and assembly complexity. That step prevents overcontrol in low-risk builds and undercontrol in critical ones.

Then define the few checkpoints that truly predict rework. For many programs, these are DFM release, incoming material verification, print stability, reflow discipline, and traceable defect review.

Keep the process guide specific. Use defect families, measurable thresholds, and named records. Broad statements about quality rarely change production behavior.

Where multiple sectors overlap, benchmark criteria across IPC, ISO, and IATF expectations instead of treating them as separate paperwork layers. That creates a clearer basis for decisions.

A solid next step is to review one recent rework-heavy build against this process guide. Compare assumptions, checkpoints, and traceability links. The gaps usually appear faster than expected.
