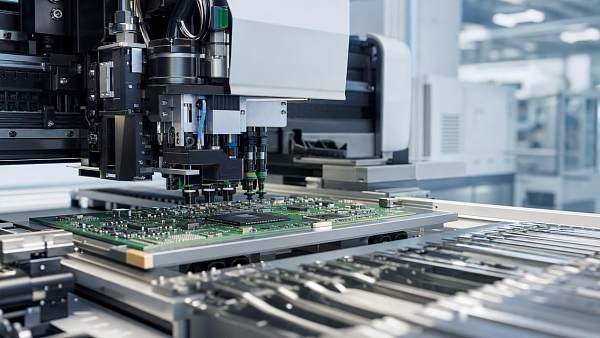

SMT Placement Accuracy Metrics That Actually Predict Yield

In SMT assembly, chasing tighter tolerances means little if the numbers fail to reflect real production outcomes. For project leaders and engineering managers, understanding which smt placement accuracy metrics actually correlate with yield is essential for reducing defects, controlling cost, and improving supplier decisions. This article highlights the indicators that matter most when accuracy must translate into measurable manufacturing performance.

A checklist approach is the fastest way to evaluate placement capability because many quoted figures look impressive in isolation yet say very little about production stability. A machine may advertise exceptional micron-level repeatability, but if its real-world performance shifts under mixed component packages, board warpage, stencil variation, feeder wear, or line-to-line changeover, the yield impact can be disappointing. For project managers, the practical question is not “What is the smallest number on the brochure?” but “Which smt placement accuracy metrics consistently predict first-pass yield, defect escape risk, and cost of poor quality?”

Start with this rule: evaluate accuracy by yield relevance, not by headline precision

Before reviewing any supplier report, line audit, or equipment benchmark, confirm whether the data links placement behavior to downstream outcomes. In a modern manufacturing environment spanning electronics, automotive modules, industrial controls, and smart infrastructure, the most valuable smt placement accuracy metrics are those that help procurement and engineering teams predict solder defects, inspection burden, rework rates, and long-term field reliability.

Use the following priority logic:

• Prefer process-based metrics over single-machine capability claims.
• Prefer distribution data over best-case samples.
• Prefer package-specific accuracy over mixed average values.
• Prefer yield correlation over isolated metrology numbers.
• Prefer long-run stability data over short qualification runs.

Core checklist: the smt placement accuracy metrics that deserve first review

1. X-Y placement error distribution, not just nominal accuracy

The first metric to request is the full X-Y offset distribution by component family. A quoted accuracy such as “±30 μm at 3 sigma” is less useful than a distribution showing mean offset, standard deviation, drift over time, and outlier frequency. Yield is rarely driven by average placement alone; it is driven by the tail of the distribution where insufficient solder overlap, tombstoning, bridging, and open joints begin to appear.

What to check:

• Mean X and Y offset by package type
• 3-sigma or Cpk performance against pad geometry
• Outlier count beyond process window limits
• Drift between start-up, mid-run, and end-of-shift conditions

For project decisions, this metric often predicts whether a line can hold yield during volume ramp, not just during validation.

2. Angular placement error for fine-pitch and polarized parts

Rotational misalignment is commonly underestimated in supplier reviews. Yet for QFPs, connectors, LEDs, power components, and bottom-terminated packages, theta error can drive solder bridging, insufficient toe fillet formation, and hidden head-in-pillow style escapes. If your product mix includes fine-pitch logic, automotive ECU boards, or high-density industrial controllers, angular placement error should be treated as a primary smt placement accuracy metric.

Ask for rotational error by package and nozzle type, especially after feeder replenishment or recipe change. Stable angular control is often more indicative of usable yield than an excellent X-Y average alone.

3. Placement capability by package class

A mixed result across all components can hide serious package-specific weakness. Separate the data for 0201 or 01005 passives, CSP/BGA, QFN, odd-form low-profile devices, large connectors, and heavy thermal components. Different packages react differently to nozzle vacuum, vision recognition, board support, and acceleration profiles.

If a supplier reports only one blended number, that is a risk signal. Project leaders should insist on segmented smt placement accuracy metrics because actual yield losses often concentrate in a small subset of high-risk parts.

4. Accuracy under production speed, not test speed

Many lines perform differently when they move from qualification pace to commercial takt time. High acceleration, feeder density, component recognition load, and board handling variability can degrade effective placement. Therefore, one of the most useful checks is whether accuracy data was captured at the same throughput used for shipped product.

A good benchmark asks three questions:

1. Was the data measured at rated speed or actual recurring production speed?
2. Did the test include normal operator interventions and feeder swaps?
3. Was the board mix representative of current customer programs?

5. Placement-to-print alignment consistency

Placement accuracy alone does not predict yield unless it is interpreted relative to solder paste location and volume. If stencil print offset and pick-and-place offset move in the same direction, defects may remain low. If they move in opposite directions, even modest placement errors can create opens or bridges. For this reason, advanced teams review placement in relation to SPI and AOI data, not as a stand-alone number.

This is one of the most practical smt placement accuracy metrics for yield forecasting: alignment consistency between printed paste center and placed component center. It reflects real assembly behavior better than machine-only accuracy claims.

6. Cpk or process capability against pad design window

Project managers often receive raw offset data without a capability interpretation. That creates unnecessary ambiguity. A process capability index, when correctly calculated, helps translate accuracy into decision language. It shows whether the line can repeatedly place within the usable tolerance window defined by land pattern, stencil design, and package lead geometry.

When comparing suppliers or lines, Cpk is especially valuable because it connects engineering variation to business risk. A lower-cost source with weaker Cpk on critical packages can easily lose its price advantage through inspection, rework, and field failure exposure.

Use this quick comparison table during audits or sourcing reviews

Scenario-specific checks for project leaders

For NPI and ramp-up programs

Prioritize sensitivity to board variation, feeder setup consistency, and first-pass setup accuracy. In new product introduction, the biggest yield risk is often not machine limitation but unstable interaction among CAD data, fiducial strategy, component library settings, and print alignment. The best smt placement accuracy metrics for NPI are those that reveal setup repeatability across multiple pilot runs.

For automotive, industrial control, and high-reliability assemblies

Focus on long-run drift, traceability, and package-specific control for safety-relevant or thermally stressed parts. Here, acceptable cosmetic placement is not enough. The metric set should support compliance logic aligned with IATF, IPC, internal PPAP expectations, and customer audit requirements. In these environments, consistency over time matters more than isolated peak accuracy.

For cost-down or supplier transfer projects

Do not compare quoted machine capability alone. Compare defect Pareto before and after transfer, package-level placement distributions, and the effect on AOI false calls and rework hours. A lower quoted cost can quickly be erased by line instability. For sourcing teams using technical benchmarks, smt placement accuracy metrics should be reviewed alongside yield loss cost, not as an isolated technical line item.

Commonly ignored factors that distort the metrics

• Board warpage: Reported placement accuracy may look acceptable on flat coupons but deteriorate on large or thermally sensitive boards.
• Feeder condition: Worn feeders, inconsistent tape indexing, and vibration can create intermittent offset that average values hide.
• Vision library quality: Poor component recognition settings can cause package-dependent rotational or centering errors.
• Nozzle maintenance: Vacuum inconsistency and contamination shift accuracy gradually before a clear failure appears.
• Data window selection: A short, handpicked run may not reflect actual shift-to-shift or lot-to-lot performance.

These factors matter because they weaken the predictive value of smt placement accuracy metrics unless the measurement plan is realistic.

Execution guide: what to ask suppliers or internal teams next

If you need a decision-ready review, request the following information in one package:

1. Three months of package-level placement offset data with mean, sigma, and outlier counts.
2. Correlation between placement offsets, SPI findings, AOI defects, and first-pass yield.
3. Evidence of performance at actual throughput and normal changeover frequency.
4. Cpk by critical package for your highest-risk product families.
5. Maintenance and calibration records affecting feeder, nozzle, and vision performance.
6. Escalation plan for drift detection and containment when trends move toward control limits.

This checklist helps engineering managers move from generic capability statements to operational control. It also supports more credible benchmarking across suppliers, lines, regions, and product categories—an approach aligned with GIM’s broader role in cross-sector manufacturing intelligence, where verified technical data must support procurement strategy and resilient production planning.

FAQ: quick answers on smt placement accuracy metrics

Which metric is the best single predictor of yield?

There is rarely one universal metric, but X-Y offset distribution combined with placement-to-print alignment is usually the strongest predictor because it reflects both variation and real solder joint opportunity.

Are tighter machine specs always better?

No. Tighter nominal specs help only if they remain stable across package mix, throughput, maintenance condition, and board variation. Production stability is more valuable than brochure-level peak performance.

Should procurement teams care about these metrics?

Absolutely. SMT placement accuracy metrics influence yield, inspection workload, rework cost, and supplier risk. They should be part of technical-commercial evaluations, especially for high-mix or high-reliability programs.

Final decision checklist and next step

If you want smt placement accuracy metrics that actually predict yield, prioritize distribution over headline numbers, package-specific data over blended averages, process correlation over isolated machine claims, and long-run stability over short demonstrations. For project leaders, that is the difference between approving a line that looks capable and approving one that consistently delivers manufacturable, cost-controlled output.

If you are preparing for a supplier review, line upgrade, transfer project, or NPI launch, the most useful next conversation should confirm six items: critical package list, target yield, actual takt conditions, SPI/AOI correlation data, capability thresholds, and containment plans for drift. Clarifying those points early will make your technical evaluation faster, your sourcing decisions stronger, and your manufacturing results more predictable.
