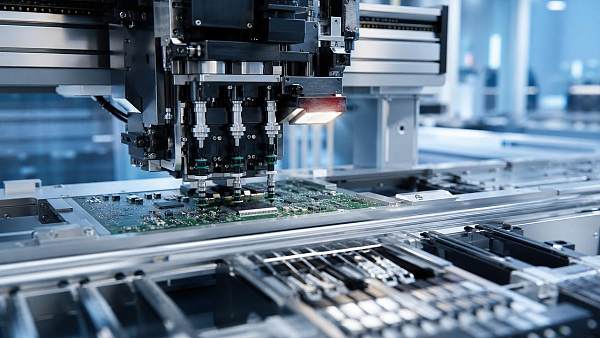

SMT Placement Accuracy Metrics That Affect Yield

For quality and safety teams, understanding smt placement accuracy metrics is essential to reducing defects, protecting process stability, and improving final yield. From component alignment tolerance to machine repeatability and board registration, these indicators directly influence solder joint reliability and downstream performance. This article explains the most important metrics, shows where they matter in mixed-industry manufacturing, and outlines how benchmarking supports more predictable SMT results.

What are SMT placement accuracy metrics, and why do they matter for yield?

smt placement accuracy metrics describe how precisely a placement system positions components on printed circuit boards.

They connect machine motion, feeder consistency, vision alignment, and board referencing into measurable quality outcomes.

When accuracy drifts, solder joints become vulnerable to opens, bridges, tombstoning, skew, and latent field failures.

That is why smt placement accuracy metrics are not only machine specifications. They are yield indicators.

Across electronics, mobility systems, smart equipment, and infrastructure controls, small placement errors can create large reliability risks.

A power module, sensor board, telematics unit, or industrial controller may all use different packages.

Yet each depends on stable centering, correct rotation, and repeatable placement under production speed.

The main reason these metrics affect yield is simple. Reflow can self-correct only within limited tolerances.

If paste volume, pad design, and placement offset move outside that window, defects increase quickly.

• X-Y offset shows positional deviation from the target land pattern.
• Theta error shows rotational misalignment of the component body.
• Z-axis control affects placement force and coplanarity behavior.
• Repeatability shows whether results stay consistent over repeated cycles.
• Capability over time reveals whether the line remains stable during shifts.

Which SMT placement accuracy metrics should be tracked first?

Many lines collect data, but not all data improves decisions. Priority should go to metrics tied directly to defect escape.

1. Component placement offset

This is the most recognized among smt placement accuracy metrics. It measures the distance between actual and intended placement coordinates.

Offsets should be tracked by package type, pad geometry, and line speed. Averages alone are not enough.

2. Placement repeatability

Repeatability shows whether the machine can place the same component consistently under identical conditions.

A line may look accurate in one sample, yet produce unstable results over longer runs.

3. Fiducial recognition accuracy

Poor fiducial reading creates board-to-board coordinate errors. This issue often appears before placement drift is obvious.

Solder mask contrast, contamination, and warped panels can weaken registration performance.

4. Rotation accuracy

Fine-pitch QFPs, connectors, and passive arrays are sensitive to angle error. Even minor theta deviation can reduce wetting margins.

5. Feeder pick consistency

Some placement defects start before the nozzle reaches the board. Inconsistent pickup creates orientation and centering variation.

For practical control, these smt placement accuracy metrics should be reviewed together rather than separately.

How do board design and materials change SMT placement accuracy metrics?

Machine capability matters, but product design strongly shapes achievable results in production.

Thin boards, large panels, uneven copper balance, and complex stackups can distort registration behavior.

This is especially relevant in automotive modules, industrial controls, energy systems, and ruggedized electronics.

Several design factors can shift smt placement accuracy metrics even when the placement machine remains unchanged.

• Panel warpage alters camera focus and placement plane stability.
• Inadequate fiducial placement reduces registration confidence.
• Ultra-fine pads tighten acceptable offset limits.
• Heavy nearby components can affect local flatness during transport.
• Surface finish variation influences optical detection in some systems.

A useful approach is to compare design tolerance windows against actual placement capability by package family.

If the process center is already near the edge, yield will become vulnerable during volume scaling.

This is where technical benchmarking platforms such as GIM add value through cross-sector comparability.

Benchmarking can reveal whether a line issue is truly machine-related, design-related, or linked to material behavior.

How can SMT placement accuracy metrics be interpreted without common mistakes?

One common mistake is trusting vendor specification sheets without matching them to production conditions.

Published accuracy values may reflect ideal test methods, special components, or slower operating speeds.

Another mistake is mixing machine accuracy with total process accuracy. They are related, but not identical.

Total process performance includes stencil printing, board clamping, environmental control, and component quality.

To interpret smt placement accuracy metrics correctly, focus on distribution, trend, and context.

1. Check mean offset and standard deviation together.
2. Review performance by component family, not only line average.
3. Compare first article data with mass production data.
4. Correlate AOI findings with placement records and reflow outcomes.
5. Watch drift by shift, nozzle set, feeder bank, and board lot.

Misreading the data can trigger unnecessary equipment changes while the real issue sits in setup discipline.

The best interpretation framework links metrics to defect modes, not just to numerical targets.

What is a practical way to benchmark SMT placement accuracy metrics across applications?

Benchmarking works best when it compares similar package classes, board complexity levels, and reliability demands.

A consumer board and a mission-critical control board should not share identical acceptance logic.

Still, the same smt placement accuracy metrics can be normalized into a useful review model.

A strong benchmark also includes IPC criteria, field-return data, and package-specific tolerance mapping.

Cross-industry analysis is useful because package behavior often repeats across different end-use sectors.

For example, a camera module, smart sensor, and environmental controller may share similar placement constraints.

How can process teams improve SMT placement accuracy metrics without major capital spending?

Improvement does not always begin with machine replacement. Many gains come from process discipline and verification routines.

Start by ranking defects that most often link back to placement variation.

Then match those defects to the smt placement accuracy metrics most likely to explain them.

• Calibrate vision and nozzle libraries on a fixed schedule.
• Validate feeder condition before high-mix changeovers.
• Control panel warpage with better support tooling.
• Separate machine capability checks from product qualification checks.
• Use AOI trend feedback to refine placement windows.
• Review environmental variation, especially temperature and vibration.

It is also wise to define alert limits before failures exceed specification limits.

Preventive intervention is cheaper than repeated rework, scrap, and reliability investigation.

Where multiple product families run on shared lines, benchmark by complexity tier rather than one universal target.

FAQ: quick answers on SMT placement accuracy metrics

In summary, smt placement accuracy metrics are among the clearest indicators of SMT yield health.

They help distinguish equipment limits from design limits, and random defects from systemic drift.

When reviewed with process context and technical benchmarks, these metrics become a practical decision tool.

The next useful step is to map current placement data against package risk, defect history, and board registration stability.

That approach creates a stronger foundation for consistent yield, safer assemblies, and more resilient manufacturing performance.
