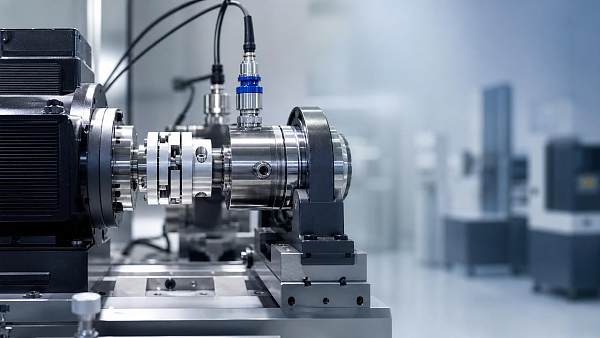

Shaft Couplings Selection: Torque, Fit, and Failure Risks

Selecting shaftcouplings is rarely just a catalog exercise; it is a risk-control decision that affects torque transmission, alignment tolerance, vibration behavior, maintenance intervals, and downstream equipment reliability. For technical evaluators comparing industrial drive systems, the right coupling choice depends on verified torque data, shaft fit accuracy, material compatibility, and clear evidence of failure modes under real operating loads. This guide frames shaft coupling selection through a practical benchmarking lens, helping teams identify performance trade-offs before they become costly shutdowns.

Why shaftcouplings become a cross-industry reliability decision

In modern manufacturing, shaftcouplings connect more than two rotating shafts. They connect procurement assumptions, design margins, maintenance schedules, and warranty exposure.

A coupling used in an EV test rig faces different risks than one driving an irrigation pump, a filtration blower, or precision tooling spindle.

Technical evaluators must therefore compare shaftcouplings by load profile, shaft geometry, operating environment, and supplier evidence, not by nominal torque alone.

• Electronics and semiconductor equipment often prioritizes backlash control, cleanliness, and predictable dynamic response at compact dimensions.
• Automotive and mobility systems usually require fatigue resistance, shock-load tolerance, and traceable material or process controls.
• Smart agriculture and infrastructure applications often demand corrosion resistance, easy field replacement, and tolerance to dust or moisture.
• Precision tooling applications may treat runout, torsional stiffness, and vibration behavior as decisive performance indicators.

Global Industrial Matrix evaluates such decisions across multiple industrial pillars, helping teams compare mechanical hardware against adjacent-system risks and operational targets.

Which torque data matters before selecting shaftcouplings?

Torque selection should begin with the machine’s duty cycle, not the most attractive catalog rating. Continuous torque and peak torque serve different purposes.

A coupling that survives steady operation may still fail under startup inertia, emergency stops, reciprocating loads, or cyclic speed reversals.

The following table summarizes torque-related checks technical evaluators should request when benchmarking shaftcouplings across suppliers and application categories.

A strong comparison separates nominal specifications from verified operating limits. For shaftcouplings, unclear torque context often hides future downtime risk.

Practical torque calculation checkpoints

1. Confirm motor power, speed, reduction ratio, and actual driven-load behavior before applying a safety margin.
2. Identify whether the machine sees frequent starts, reversing cycles, variable frequency drive operation, or sudden load engagement.
3. Check whether coupling stiffness could create resonance with shafts, belts, gearboxes, or servo control loops.

How fit accuracy changes coupling performance and failure exposure

Even well-rated shaftcouplings can underperform when shaft fit, bore tolerance, keyway accuracy, or clamping length is poorly controlled.

Fit errors increase micro-slip, fretting, vibration, and localized stress. They also complicate maintenance because failure symptoms may appear downstream.

Technical evaluators should match coupling style to shaft tolerance, assembly method, available tools, and the organization’s maintenance discipline.

The table below compares common shaftcouplings by fit behavior and typical evaluation concerns in industrial procurement reviews.

The best option is not always the stiffest or strongest. It is the coupling whose fit assumptions match real assembly capability.

Fit questions that reduce rework

• Can the supplier provide bore tolerance, recommended shaft tolerance, and clamping torque requirements in one technical package?
• Will the coupling tolerate expected angular, parallel, and axial misalignment after installation and thermal expansion?
• Is the hub design suitable for keyed shafts, keyless locking, taper bushings, or split-clamp installation?

What failure risks should evaluators test before approval?

Failure analysis for shaftcouplings should examine the complete drive train. Coupling damage is often the visible symptom of hidden system imbalance.

Common failure modes include fatigue cracking, elastomer breakdown, hub fretting, bolt loosening, corrosion, lubricant loss, and overload deformation.

Failure indicators worth monitoring

• Repeated elastomer insert wear may indicate torque spikes, chemical exposure, excess temperature, or incorrect hardness selection.
• Hub fretting usually points to poor bore fit, insufficient clamping force, shaft surface issues, or repeated micro-movement.
• Disc pack cracking can reflect excessive misalignment, resonance, incorrect bolt preload, or operation beyond rated speed.
• Gear tooth wear may result from lubrication breakdown, contamination, poor alignment, or inadequate maintenance intervals.

For high-value equipment, evaluators should request failure-mode documentation, maintenance recommendations, and limits for misalignment under combined loads.

GIM’s benchmarking approach helps procurement and engineering teams compare failure evidence across sectors instead of relying only on sales datasheets.

Procurement checklist for comparing shaftcouplings suppliers

Technical purchasing teams often work under tight budgets and delivery windows. A structured checklist makes supplier comparison faster and less subjective.

Before approving shaftcouplings, evaluators should connect commercial terms to measurable engineering data, assembly requirements, and compliance expectations.

The following checklist supports RFQ comparison when multiple suppliers offer similar coupling categories but different documentation depth.

A lower unit price can be misleading if it increases machining changes, field adjustments, inspection burden, or downtime probability.

Standards and compliance context

Relevant standards may include ISO dimensional practices, ISO 1940 balancing principles, IATF-related supplier controls, and application-specific safety procedures.

For regulated manufacturing environments, shaftcouplings should be reviewed alongside traceability expectations, inspection records, maintenance instructions, and change-control procedures.

Cost, alternatives, and lifecycle trade-offs

The most economical shaftcouplings are not necessarily the lowest-priced items. Lifecycle cost includes downtime, replacement labor, machining, inventory, and inspection time.

When budget is constrained, evaluators should protect critical performance variables first, then consider acceptable simplifications in materials or accessories.

Where substitutions are usually reasonable

• Non-critical constant-speed drives may accept simpler flexible couplings if torque, alignment, and environmental limits are documented.
• Low-load encoder connections can use compact designs when backlash, inertia, and shaft clamping are verified.
• Field-service applications may prioritize replaceable elastomer elements if precision response is less important than rapid maintenance.

Where substitutions need caution

• Servo systems, high-speed test benches, and robotic axes can become unstable if torsional stiffness changes unexpectedly.
• Heavy shock-load equipment may fail quickly when peak torque ratings are substituted without reviewing duty cycle.
• Corrosive or wet environments can invalidate a low-cost choice if coatings, fasteners, or elastomers are unsuitable.

A practical cost model should compare purchase price against downtime probability, spare-part strategy, installation labor, and expected inspection frequency.

FAQ: practical questions about shaftcouplings selection

How do I choose shaftcouplings when torque data is incomplete?

Start by reconstructing torque from motor power, speed, load inertia, and duty cycle. Then request supplier confirmation for peak events and service factor.

If load variation is unknown, avoid selecting near the rated limit. Build margin around startup, reversing cycles, and jam recovery conditions.

Are flexible shaftcouplings always safer than rigid options?

No. Flexible designs can absorb misalignment and vibration, but they may reduce positioning accuracy or introduce elastomer wear.

Rigid or high-stiffness designs may be suitable when alignment is controlled and motion response matters more than damping.

What should be checked during incoming inspection?

Inspect bore size, keyway geometry, hub finish, fastener condition, documentation, material notes, and any visible shipping damage.

For critical shaftcouplings, confirm balancing requirements, installation torque values, and whether assembly marks or orientation instructions apply.

When should a coupling be redesigned instead of replaced?

Redesign is worth considering when repeated failure appears after correct installation, proper alignment, and documented maintenance.

The root cause may involve shaft layout, bearing loads, thermal growth, resonance, or an incorrect coupling architecture.

Why choose GIM for shaftcouplings benchmarking and sourcing support?

Cross-sector intelligence for technical evaluators

Global Industrial Matrix helps teams evaluate shaftcouplings through verifiable data, supplier comparison, application risk mapping, and standards-aware technical review.

Because GIM connects semiconductor, automotive, agri-tech, infrastructure, and precision tooling insights, evaluators can avoid narrow single-industry assumptions.

• Consult GIM to confirm torque assumptions, misalignment limits, material compatibility, and lifecycle maintenance implications.
• Request support comparing coupling alternatives, supplier documentation, lead-time exposure, and validated substitution routes.
• Use GIM’s benchmarking perspective to align shaftcouplings selection with ISO, IATF, IPC-adjacent, and project-specific requirements.
• Discuss custom evaluation needs, sample review plans, quotation preparation, and delivery-cycle constraints before final approval.

For technical evaluators, the goal is not simply to buy shaftcouplings. The goal is to reduce drive-system uncertainty before it reaches production.

Contact GIM with your torque range, shaft dimensions, application environment, certification expectations, and delivery timeline for a focused selection discussion.
